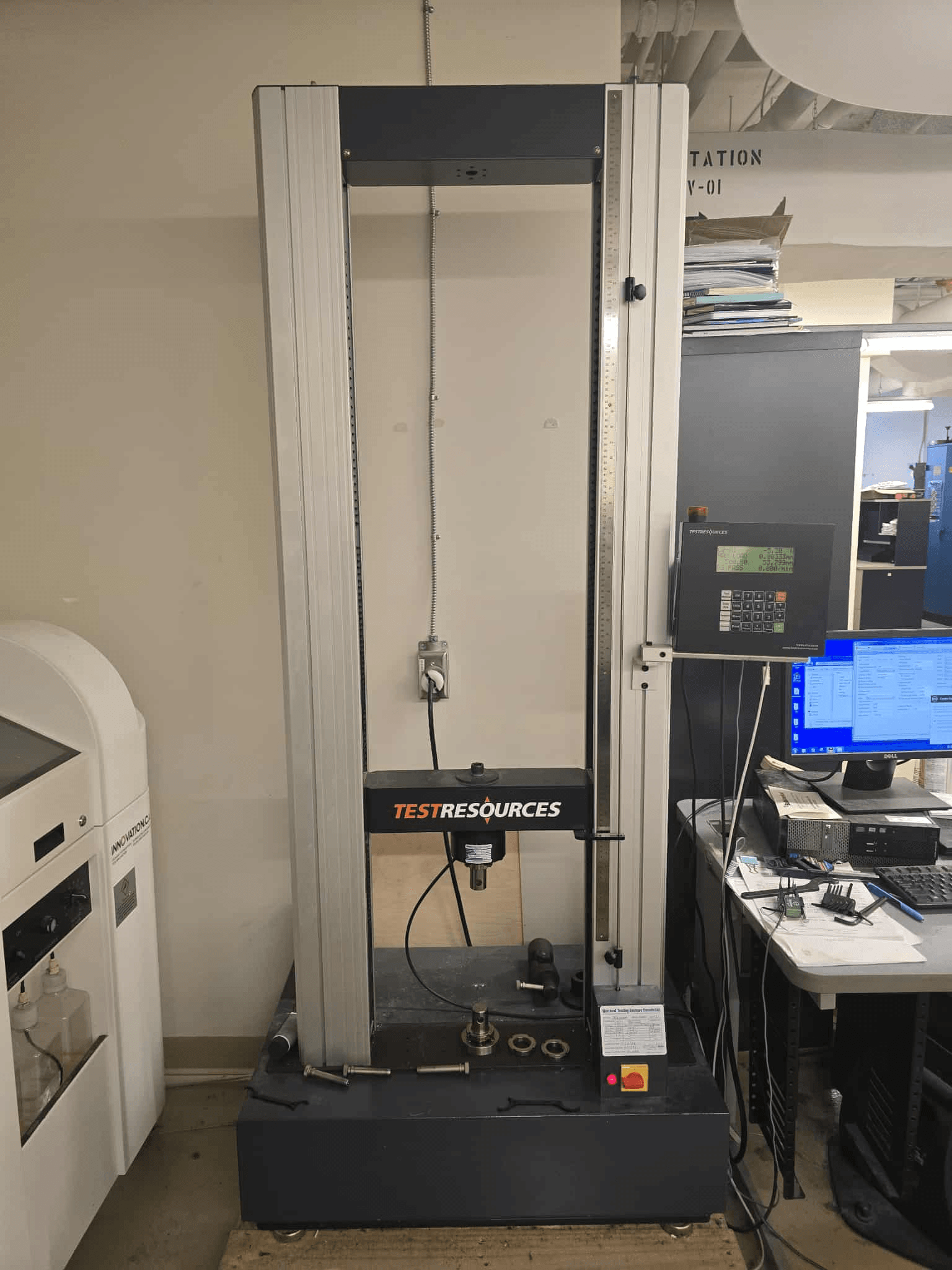

TestResources 300 Series Dual‑Column Electromechanical Universal Test Machine

The TestResources 300 Series dual‑column electromechanical universal test machine delivers broad force capacity (5 – 500 kN) and precise, constant‑rate control through a digital closed‑loop servo drive. Its stiff, floorstanding frame and up to 1190 mm of crosshead travel accommodate a wide range of sample sizes and fixtures, while programmable speed control (up to 40 in/min) and a user‑friendly digital controller streamline static tension and compression testing per ASTM/ISO standards.

Key Specifications:

• Supplier: TestResources Inc.
• Model / Series: 300 Series Electromechanical Universal Test Machine
• Force capacity: 5 – 500 kN (1125 – 112500 lbf)
• Crosshead travel: up to 1190 mm (47 in)
• Speed range: 0.001 – 1000 mm/min (0.00004 – 40 in/min)
• Frame: Dual‑column, electromechanical, floorstanding
• Applications: Static tension/compression per ASTM/ISO standards
• Control: Digital closed‑loop constant‑rate extension/compression control, single control channel
