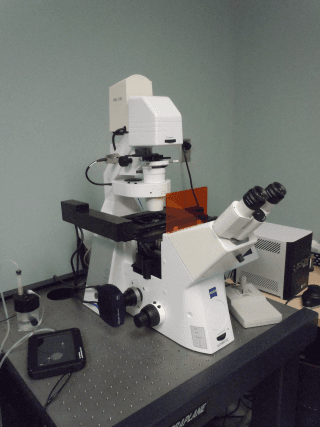

• Zeiss Axio Observer Fully Automated Inverted Microscope.
• Multi-channel epifluorescence, phase contrast, DIC, and bright field imaging.
• Z-stack or timelapse. Image de-convolution module.
• Motorized stage – timelapse with multi-well plates.
• Live cell imaging

Features:

• Zeiss 506 monochrome CCD camera, 2752 x 2208 pixels, 4.54 um pixels
• Infinity color camera.
• Multi-colour, timelapse and z-stacks.
• Multi-position and tiling.
• DIC, Polarized light, and Phase contrast.

Light Sources:

• X-Cite 120 LED

Objectives:

• 10X PLAN NEOFLUAR, NA= 0.30, Ph 1
• 20X PLAN APOCHROMAT, NA=0.80
• 40X LD ACHROPLAN, NA=0.60, Ph2, Korr
• 63X PLAN APOCHROMAT, NA=1.40, OIL, DIC
• 100X PLAN NEOFLUAR, NA=1.30, OIL, Ph 3

Fluorescence Cubes:

• FS 49 (DAPI)
• FS 10 (eGFP)
• FS 15 (TRITC)
• FS 32 (Cy5)
• DIC Polarizer

Optional

• Texas Red
• YFP
• CFP

Initial training sessions usually last about 3 hours and include the hourly microscope fee plus the technical support fee.

IMPORTANT: ALL training and technical support is by appointment ONLY and will depend on the availability of the ABIF staff.
