EquipmentAvailable

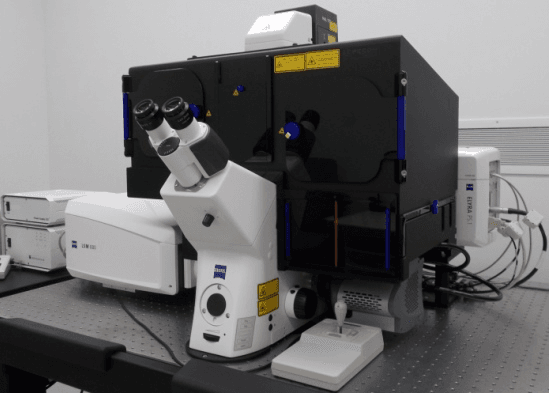

Zeiss LSM880 ElyraPS1 laser scanning confocal and super-resolution microscope (SIM and PALM / dSTORM)
Faculty of Medicine and Health Sciences
Research Institute of the McGill University Health Centre
McGill University
Specifications
Microscopy stand: Inverted Axio Observer Z1
Software: ZEN2012
Detector for confocal: 34 channel spectral R/FL detectors
(32 GaAsp detectors array)
Cameras: Andor EMCCD camera iXon 885 and EMCCD iXon DU 897
Confocal Lasers: 405 nm, 458, 488 and 514 nm multiline, 561 nm and 633 nm
SIM/PALM lasers: 405 nm, 488nm, 561 nm and 640 nm
Objectives:
- EC Plan-Neofluar 10x/0.30 WD=5.2
- Plan-Apochromat 20x/0.8 WD=0.55
- Plan-APO 40x/1.4 Oil DIC (UV) VIS-IR
- Plan-Apochromat 63x/1.40 Oil DIC f/ELYRA
- Plan-APO 100x/1.46 Oil DIC VIS
Applications
Laser Scanning Confocal
Total Internal Reflection Fluorescence (TIRF)
Super-Resolution:
Structured Illumination (SIM)
Photo Activation Localization (PALM)
Stochastic Optical Reconstruction (dSTORM)
Molecular Imaging Platform - RI-MUHC
Faculty of Medicine and Health Sciences
Research lab focused on advancing scientific knowledge and innovation.
MF
Min Fu
