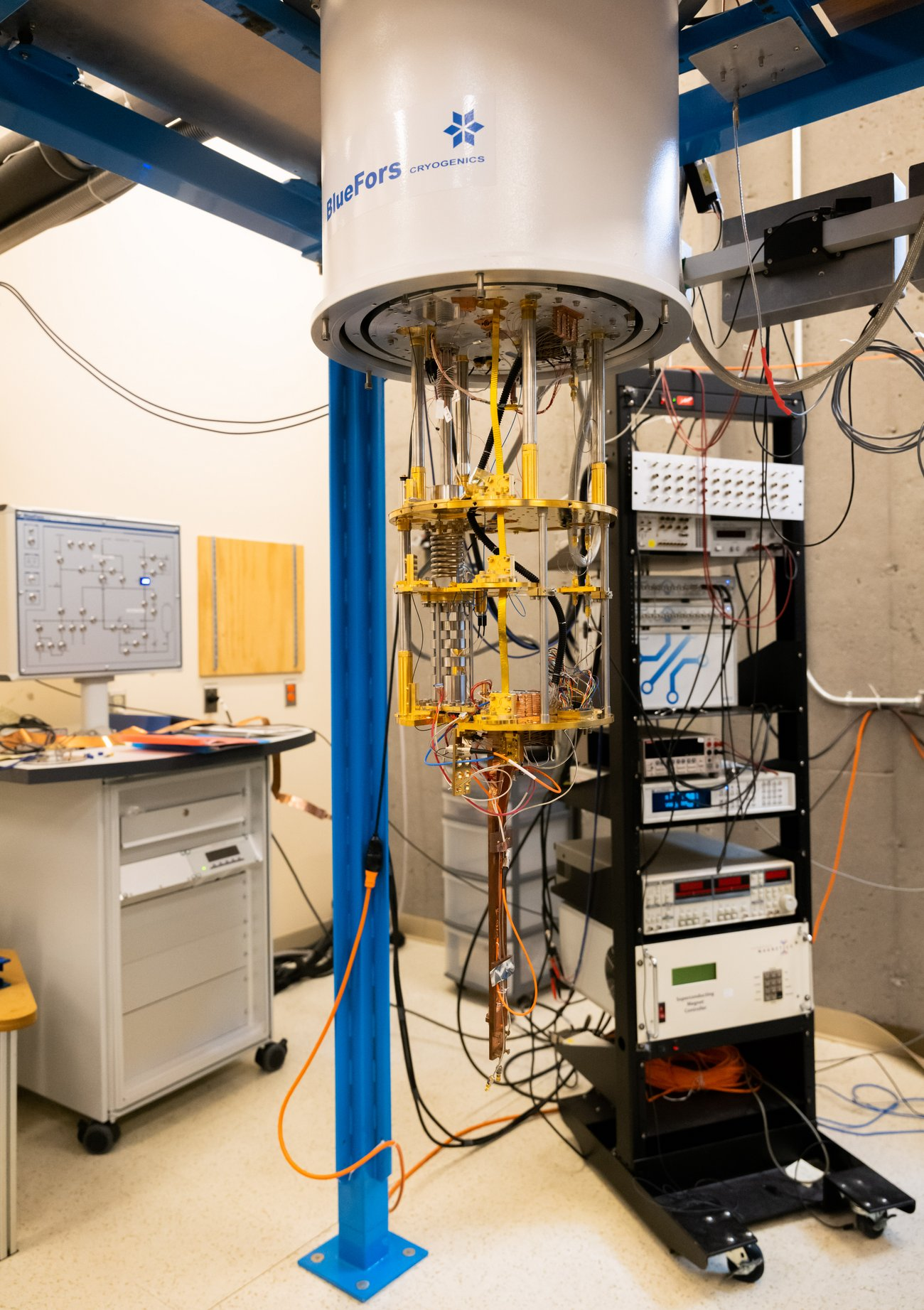

Bluefors LD250 BF1 - Closed-Cycle Dilution Refrigerator
Translated from French
Quote on request
Types of analyses: Electrical measurements at very low temperatures. Capability to apply a magnetic field of 7 T
Sample size (mm):
Min: -
Max: Diameter of 30 cm by 48 cm height
Temperature:
Min: 10 mK
Max: 1.5° K
Magnetic field (T):
Min: -7 T
Max: 7 T
Time required to cool the sample: Approximately 24 hours (except when the magnet coil is already installed)
Specific features:
Cryogen-free equipment - without the use of liquid helium
Cooling power of 335 μW at 100 mK
4 high-frequency lines (18 GHz), 24 DC electrical lines, and 24 filtered thermocoax lines
What makes it unique?: Capability to install a 7 T coil
