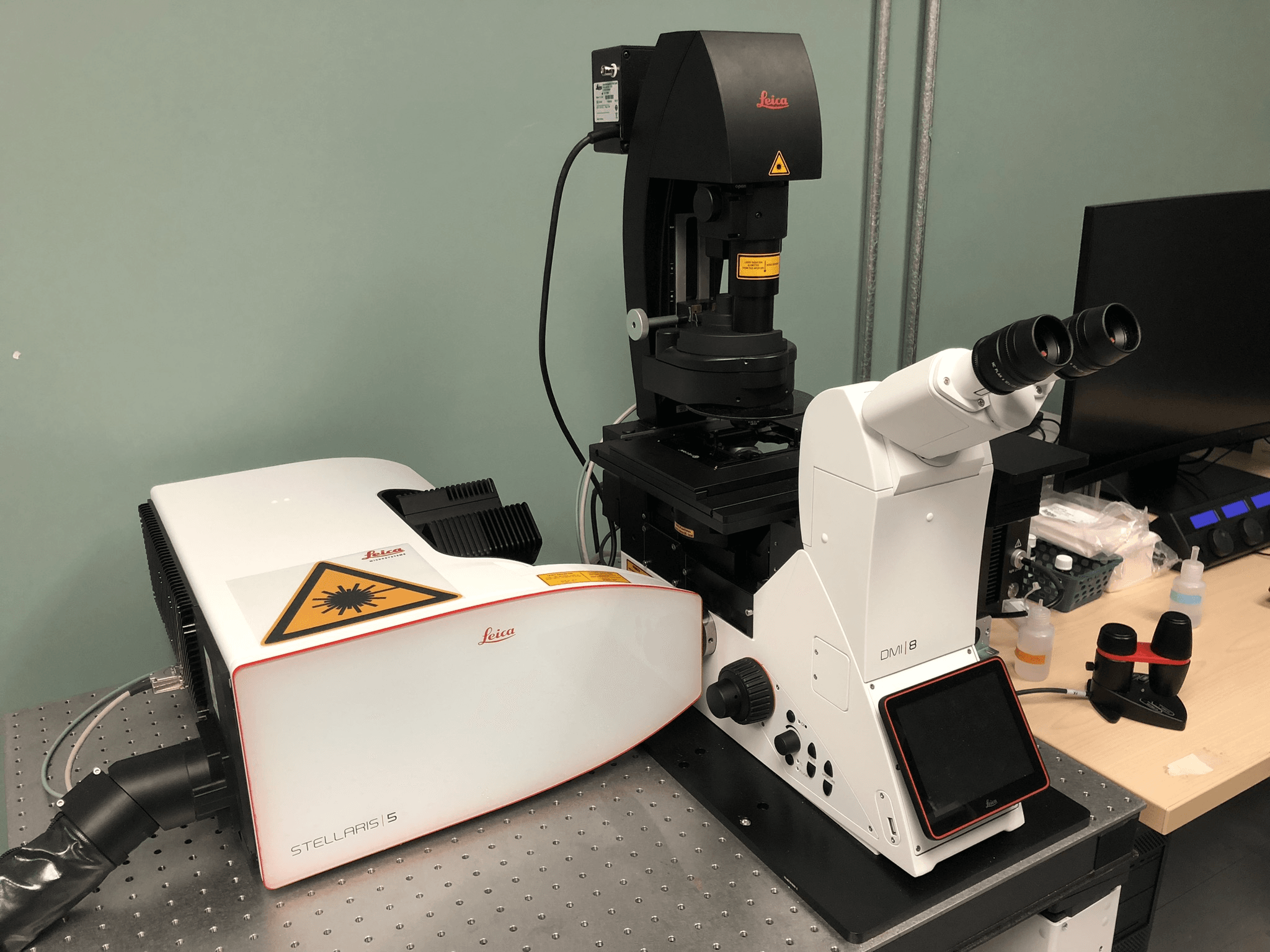

Stellaris 5 Confocal Microscope

DMi8 motorized and automated inverted microscope stand

Features:

• 4D Imaging, multi-color, z-stack, timelapse
• DIC
• LIGHTNING module for enhanced resolution
• Navigator mode for easy overview and tiling
• Stage‐top incubation system

Light Sources:

• LED3 white light source for epi-fluorescence visualization
• 4 laser lines including: 405nm, 488nm, 561nm, and 638nm

Detectors:

• 4 HyD S detectors

Objectives:

PL Fluotar 5x/0.15

• Immersion: dry

PL APO 10x/0.40 CS2

• FWD: 2.56 mm
• Coverglass: 0.17mm
• Immersion: dry

PL APO 20x/0.75 CS2

• FWD: 0.62 mm
• Coverglass: 0.17mm
• Immersion: dry

PL APO 63x/1.40 OIL CS2

• FWD: 0.14mm
• Coverglass: 0.17mm
• Immersion: oil

Fluorescence Cubes:

15525338 Filter cube LED 405

• Excitation: 405/60
• Emission: 470/40

15525314 Filter Cube GFP

• Excitation: BP 470/40
• Emission: BP 525/50

15525303 Filter Cube RHOD LP

• Excitation: BP 540/45
• Emission: LP 590

Location:

• Located in Bellini Building, Room 143.

Initial training sessions usually last about 3 hours and include the hourly microscope fee plus the technical support fee.

IMPORTANT: ALL training and technical support is by appointment ONLY and will depend on the availability of the ABIF staff.
