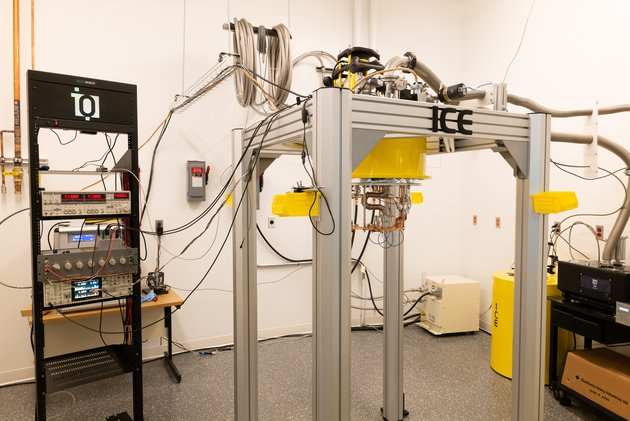

ICE-Oxford DRY ICE 1.5 K - Variable Temperature Closed Loop Refrigerator

Types of analysis: Electrical measurements over a wide temperature range

Sample size (mm):

Min: -

Max: 32 cm diameter by 50 cm height

Temperature:

Min: 1° K (pulsed) or 1.2° K (continuous)

Max: 300° K

Magnetic field (T):

Min: -

Max: -
Time required to cool the sample: 15 hours

Measurements: DC and microwave measurements

Specific features:

Cryogen-free equipment - without liquid helium
Cooling power of 50 mW at 1.29 °K and 200 mW at 1.56 °K
8 high-frequency lines (18 GHz) and 72 DC electrical lines

What makes it unique?: It allows sample characterization within a large available space, between 1 and 300 °K (the sample space is similar to that of a dilution refrigerator).
The analysis temperature range is complementary to that of the dilution refrigerator.
