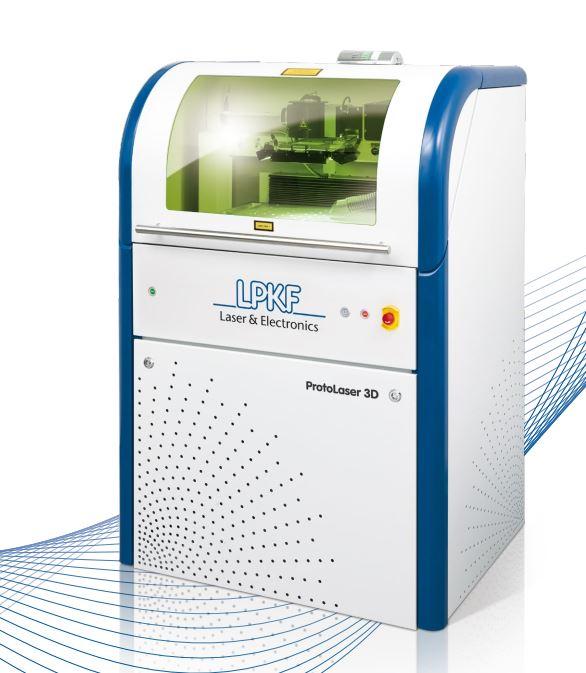

LPKF protolaser 3D

It is located in Clean room A2564. The LPKF protolaser 3d is a laser direct structuring (LDS) system. Spray paint can be used to coat parts of any shape – even 3D printed parts – with a laser-activatable layer. The ProtoLaser 3D can structure this surface, and subsequent copper deposition using the prototyping system LPKF ProtoPlate LDS. Structuring area (X x Y x Z):100 mm x 100 mm x 40 mm (3.9” x 3.9” x 1.6”) Max. material size (X x Y x Z): 300 mm x 300 mm x 130 mm (11.8” x 11.8” x 5.1”) Fixturing base plate (X x Y): 500 mm x 500 mm (19.7” x 19.7”) Accuracy* : ± 25 µm (1 Mil) Diameter of focused laser beam: 50 µm ± 5 µm (1.7 Mil ± 0.2 Mil) Important note: the protopaint and chemical for electroless copper plating is not included in the reservation rate.
