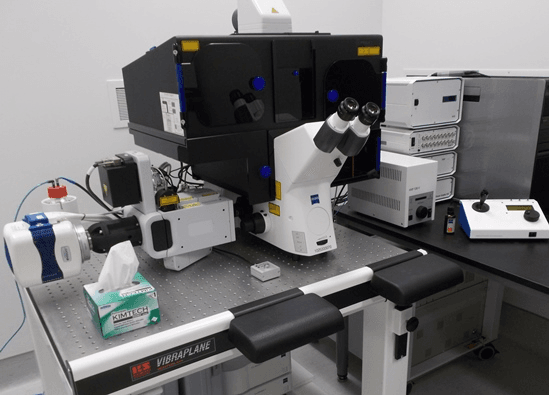

Zeiss spinning disk Axio Observer Z1 confocal microscope (TIRF/Direct FRAP)

Specifications

Microscopy stand: Inverted Axio Observer Z1

Software: ZEN2012

Detector: Camera Axiocam 506 mono

Camera EVOLVE 512 EMCCD

Lasers: 405 nm, 488 nm, 561nm and 638 nm

Live cell chamber with CO2 and temperature controller

Objectives:

• EC Plan-Neofluar 10x/0.30 WD=5.2
• Plan-Apochromat 20x/0.8 WD=0.55
• Plan-APO 40x/1.4 Oil DIC (UV) VIS-IR
• Alpha Plan-Apo 63x/1.46 Oil Corr WD=0.10

Applications

Fast acquisition

High speed 3D imaging

Direct FRAP

TIRF
