Resonetics Nanosecond Laser

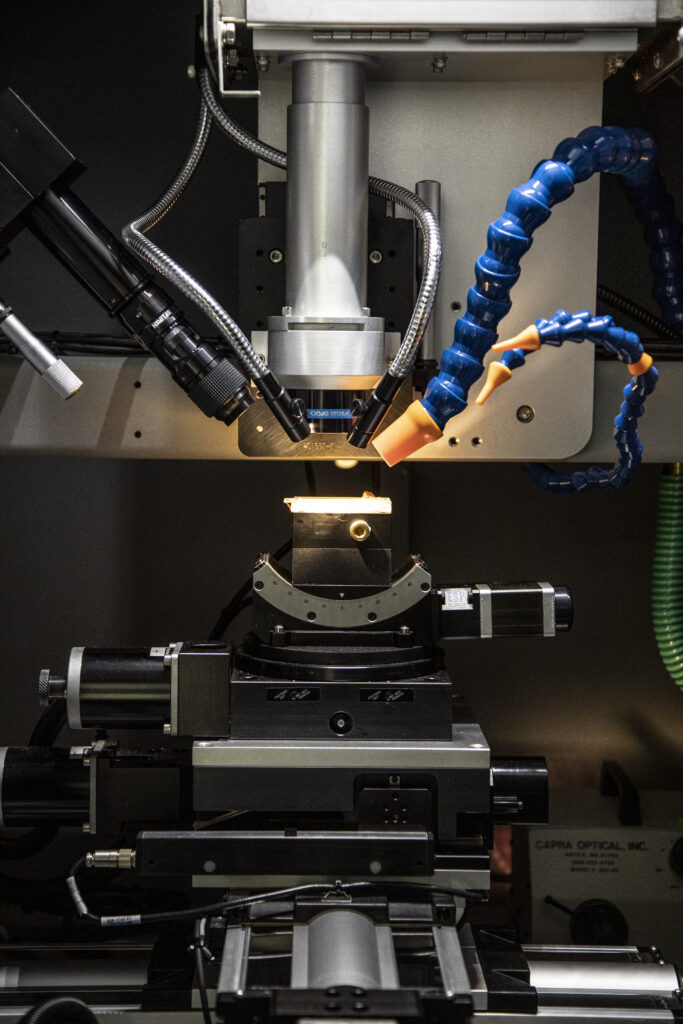

Overview: The Resonetics Rapid X 250 Nanosecond Laser is a high-precision excimer laser system designed for micromachining applications, capable of processing a wide range of materials including polymers, glass, and metals.

Key Features:

• Dual wavelength operation at 248 nm and 193 nm
• High precision micromachining with feature sizes as small as 5 microns
• Integrated CAD conversion software for direct machine code generation
• Camera vision system for part alignment and process monitoring

Technical Specifications:

• capacity: 200 mm x 200 mm XY stage
• accuracy: Not specified
• precision: 5 microns
• range: 0 to 100 Hz repetition rate
• speed: Not specified
• power: 30 W at 248 nm, 12 W at 193 nm
• dimensions: Beam dimensions 24 mm x 7 mm (FWHM)

Applications: Used in engineering applications for precision micromachining, ablation, and material processing.
