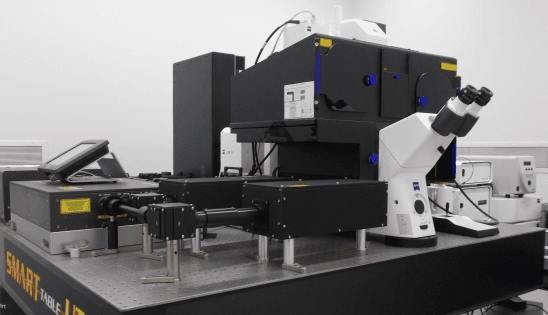

Zeiss LSM780-NLO laser scanning confocal with IR-OPO lasers microscope

Specifications

Microscopy stand: Inverted Axio Observer Z1

Software: ZEN2012

Detector for confocal: 34 channel spectral R/FL detectors (32 GaAsp detectors array)

Confocal Lasers: 405 nm, 458, 488 and 514 nm multiline, 543 nm and 633 nm

IR lasers: CHAMELEON Ultra (II)+ OPO (680-1300nm)

Live cell chamber with CO2 and temperature controller

Objectives:

• EC Plan-Neofluar 10x/0.30 WD=5.2
• Plan-Apochromat 20x/0.8 WD=0.55
• LD SC PApo 20x/1.0 Corr WD=5.6
• LD C-Apochromat 40x/1.1 W Corr UV-VI-IR
• C-Apochromat 40x/1.2 W Korr. FCS
• Plan-Apo 40x/1.0 DIC VIS-IR WD=2.5
• Plan-Apo 63x/1.0 VIS-IR WD=2.1

Applications

3D examinations (z-stack)

Deep tissue imaging

Multiphoton excitation

Live or fixed cell and tissue

FCS, RICS, FRAP, FRET
