Tekscan I-Scan System

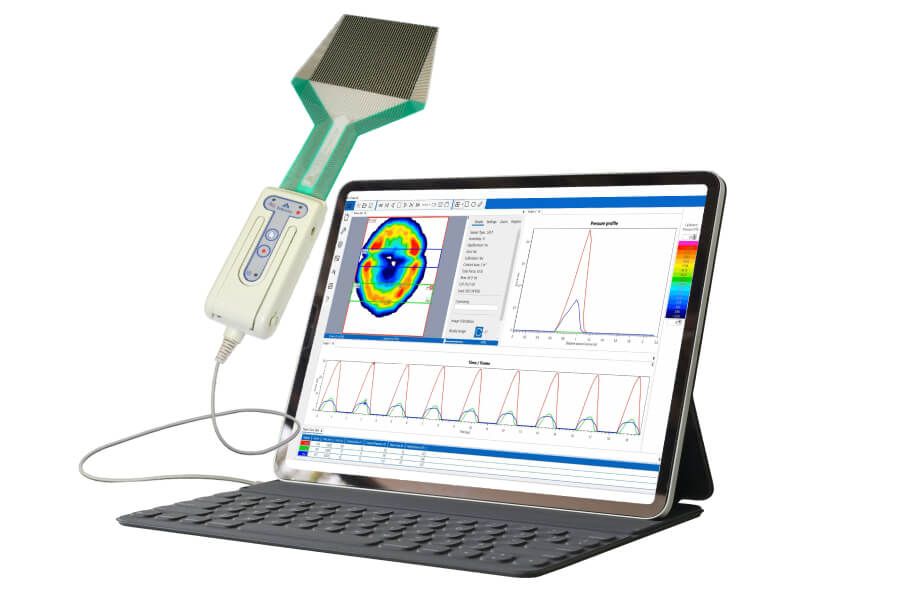

Overview: The Tekscan I-Scan System is a versatile pressure and force mapping system designed for analyzing contact pressures in engineering and biomechanical applications. It utilizes thin, flexible sensors to capture real-time force distribution measurements.

Key Features:

• High-resolution sensors for precise pressure mapping
• Configurable with over 200 sensor options
• Real-time data acquisition and analysis
• Minimal interference with measured objects

Technical Specifications:

• sensitivity: 0.1 psi
• detection limit: 0.01 psi
• resolution: 0.1 mm
• dynamic range: 0.01 to 100 psi
• sample throughput: up to 20,000 Hz
• accuracy: ±5%

Applications: The system is used in product design, manufacturing, quality control, and research to measure and analyze interface pressure between surfaces, aiding in the development of better products and processes.
