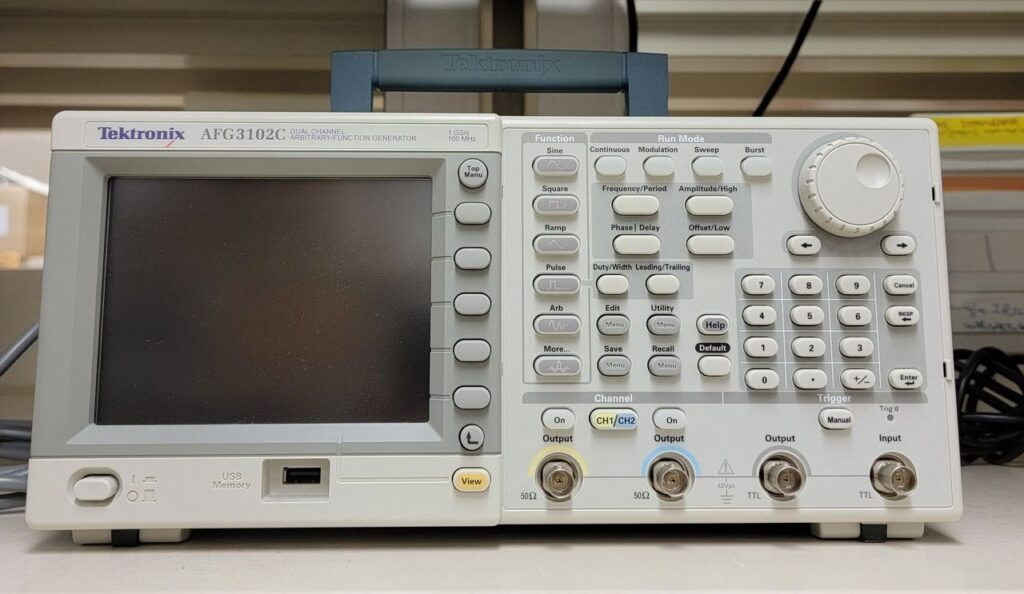

Overview: The Tektronix Function Generator is an advanced arbitrary waveform generator designed for producing precise electrical signals in device development and testing environments.
Key Features:
- Dual-channel output for versatile signal generation
- Wide frequency range up to 60 MHz for sine waveforms
- High-resolution 14-bit vertical resolution for detailed waveform creation
- Built-in 200 MHz frequency counter for accurate measurements
- USB interface for easy connectivity and control
Technical Specifications:
- capacity: 64 MB internal memory
- accuracy: ±1 ppm
- precision: 14 bits
- range: 1 mVp-p to 10 Vp-p into 50 Ω loads
- speed: 300 MS/s sample rate
- power: 100-240 V AC, 50/60 Hz
- dimensions: 261 mm x 112 mm x 318 mm
Applications: Ideal for electronics prototyping, educational labs, and research in signal processing.
