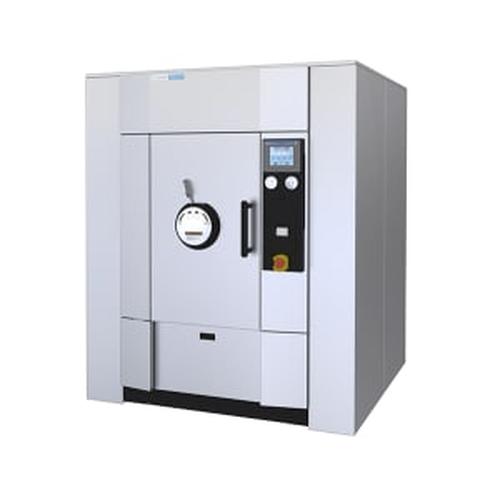

Primary Function: A medium-sized laboratory steam sterilizer designed for fast, efficient sterilization of heat- and moisture-stable materials in scientific applications. It offers robust reliability and advanced functionality, suitable for demanding laboratory environments, including Biosafety Level 3+ or 4 applications.
Technical Specifications:
- Sterilization Cycles: Pre-vacuum, gravity, liquid, lab waste, USP 660, continuous operation.
- Test Cycles: Leak test, daily air removal (Bowie-Dick) test cycles.
- Chamber Dimensions: Available in multiple sizes including 26 x 37.5 x 42 inches (671L capacity), 26 x 37.5 x 54 inches (852L capacity), and 26 x 37.5 x 66 inches (1054L capacity).
- Temperature Range: Engineered to operate at temperatures ranging from 110 °C to 141 °C.
- Door Configurations: Available with single or double doors, in manual hinged or horizontal-sliding (touch screen controlled) options.
- Control System: Features an Allen-Bradley MicroLogix™ PLC control and PanelView Plus™ 7 700 display, offering user-programmable settings, remote monitoring capabilities, Ethernet/USB interface, and email/text alerts. It complies with 21 CFR Part 11 Regulations.
- Construction: Built with durable AMSE/PED-certified stainless steel for the chamber, ensuring a robust and proven design.
- Energy Efficiency: Incorporates STERI-Green® and STERI-Green Plus® water conservation systems.
- Steam Source Options: Can utilize building steam, a stand-alone electric steam generator (provided by STERIS), or an integral indirect clean steam generator.
- Electrical Service: Typically 208/240 VAC, 60 Hz, 3-Phase; 480 VAC, 60 Hz, 3-Phase; or 400 VAC, 50 Hz, 3-Phase (International).
Applications: Ideal for sterilizing a wide range of laboratory equipment, culture media, solutions, packaging materials, pharmaceutical products, and waste. Its flexibility allows it to meet the most challenging laboratory sterilization needs.
