    Zeiss LSM800 Laser Scanning Confocal Microscope with Airyscan
    EquipmentAvailable

    Zeiss LSM800 Laser Scanning Confocal Microscope with Airyscan

    Lady Davis Institute
    Core facility
    Jewish General Hospital

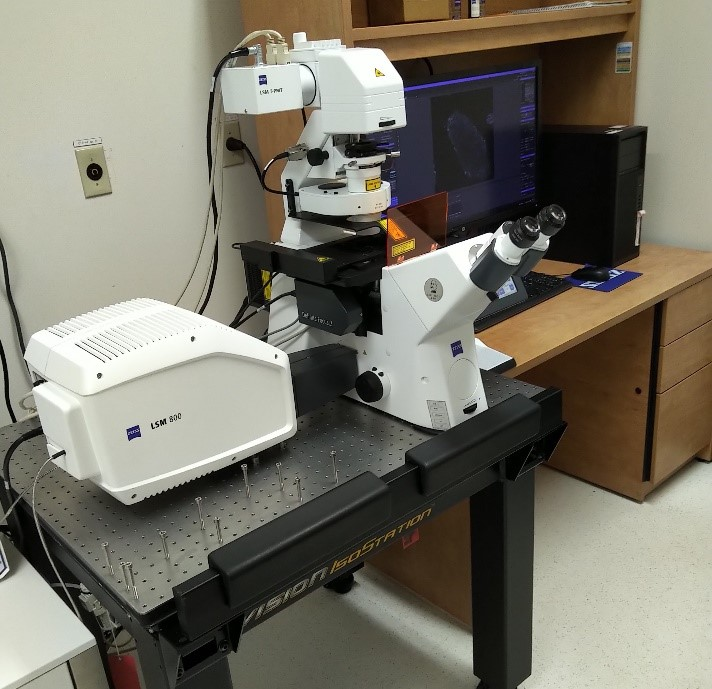

    The Zeiss LSM800 is an inverted laser-scanning confocal microscope featuring the Airyscan detector for enhanced super-resolution imaging. This system allows for imaging of tissue sections, fixed cells, and in vitro cell samples, including BSL I samples. It is equipped with four solid-state lasers at 405nm, 488nm, 561nm, and 640nm, along with a variable secondary dichroic for imaging any emission wavelength between 410-700nm. The Airyscan module significantly improves image quality and resolution, doubling the resolution up to 120 nm laterally and 350 nm axially, while also providing a 4-8x better signal-to-noise ratio (SNR). The microscope features 3 highly sensitive GaAsP detectors for fluorescence and 1 detector for transmitted light, a motorized X,Y stage, and Z focus with Zeiss Definite Focus to eliminate drift. An incubation chamber is available for precise control of temperature, CO2, and oxygen for live cell imaging.

    LDI Cell Imaging Facility

    LDI Cell Imaging Facility

    Lady Davis Institute

    Research lab focused on advancing scientific knowledge and innovation.

    MF

    Marie-Lyne Fillion

    EquipmentAvailable

    Zeiss LSM800 Laser Scanning Confocal Microscope with Airyscan

    Lady Davis Institute
    Core facility
    Jewish General Hospital

    The Zeiss LSM800 is an inverted laser-scanning confocal microscope featuring the Airyscan detector for enhanced super-resolution imaging. This system allows for imaging of tissue sections, fixed cells, and in vitro cell samples, including BSL I samples. It is equipped with four solid-state lasers at 405nm, 488nm, 561nm, and 640nm, along with a variable secondary dichroic for imaging any emission wavelength between 410-700nm. The Airyscan module significantly improves image quality and resolution, doubling the resolution up to 120 nm laterally and 350 nm axially, while also providing a 4-8x better signal-to-noise ratio (SNR). The microscope features 3 highly sensitive GaAsP detectors for fluorescence and 1 detector for transmitted light, a motorized X,Y stage, and Z focus with Zeiss Definite Focus to eliminate drift. An incubation chamber is available for precise control of temperature, CO2, and oxygen for live cell imaging.

    Zeiss LSM800 Laser Scanning Confocal Microscope with Airyscan
    LDI Cell Imaging Facility

    LDI Cell Imaging Facility

    Lady Davis Institute

    Research lab focused on advancing scientific knowledge and innovation.

    MF

    Marie-Lyne Fillion
